    • The product Ceiling IP Camera: DS-2CD1731FWD-I (3MP, 2.8-12mm, 0.01 lx, IK10, IR up to 30m, WDR) has been added to comparison list.

Dome IP Camera: Hikvision DS-2CD2342WD-I (4MP, 4mm, 0.01 lx, IR up to 30m, WDR)

Code: K1744

Be the first to review this product

Availability: Out of stock

Including VAT 386.31 EUR Disc. 0 %

Details

Array

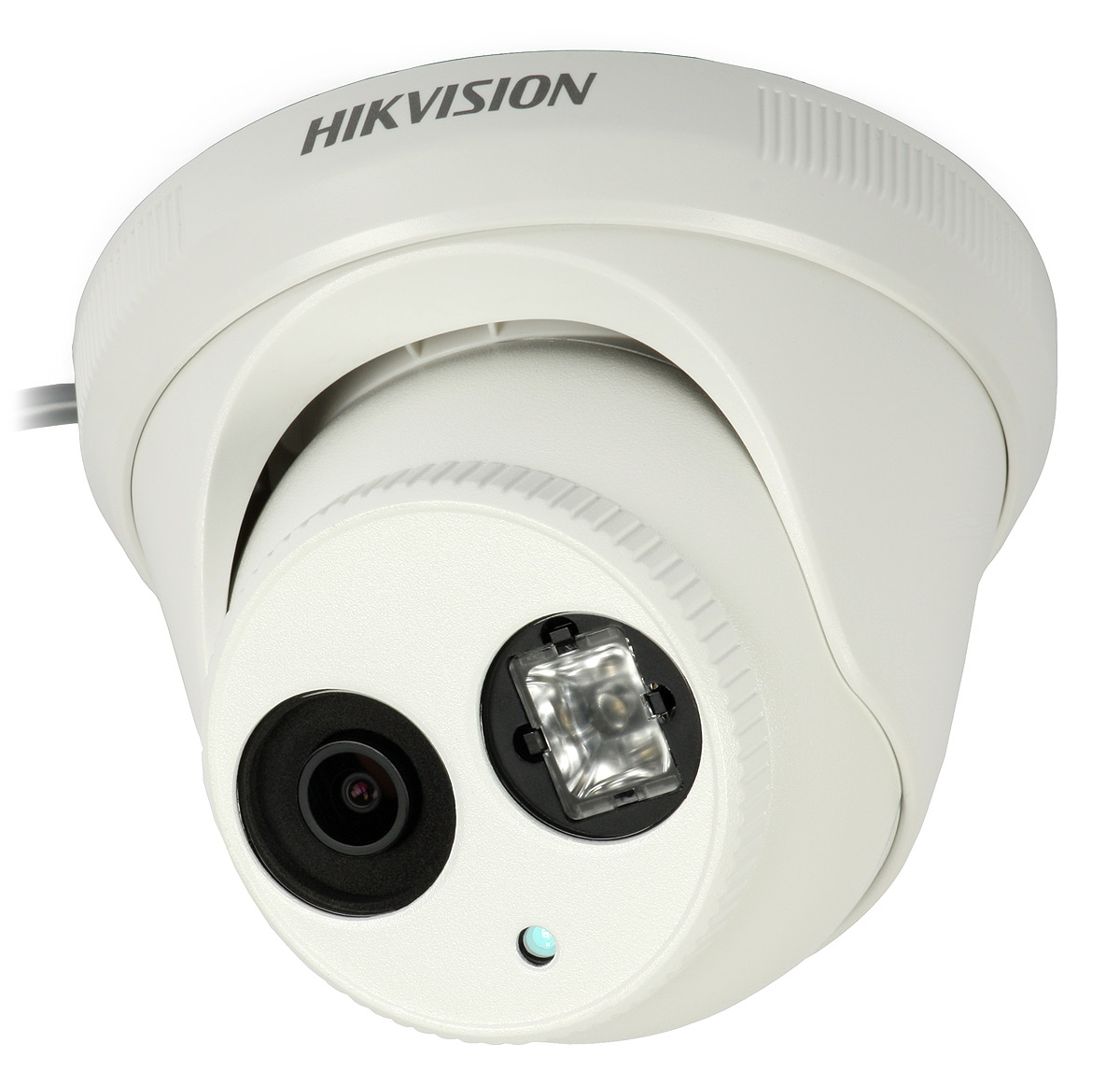

View of the camera
View of the camera

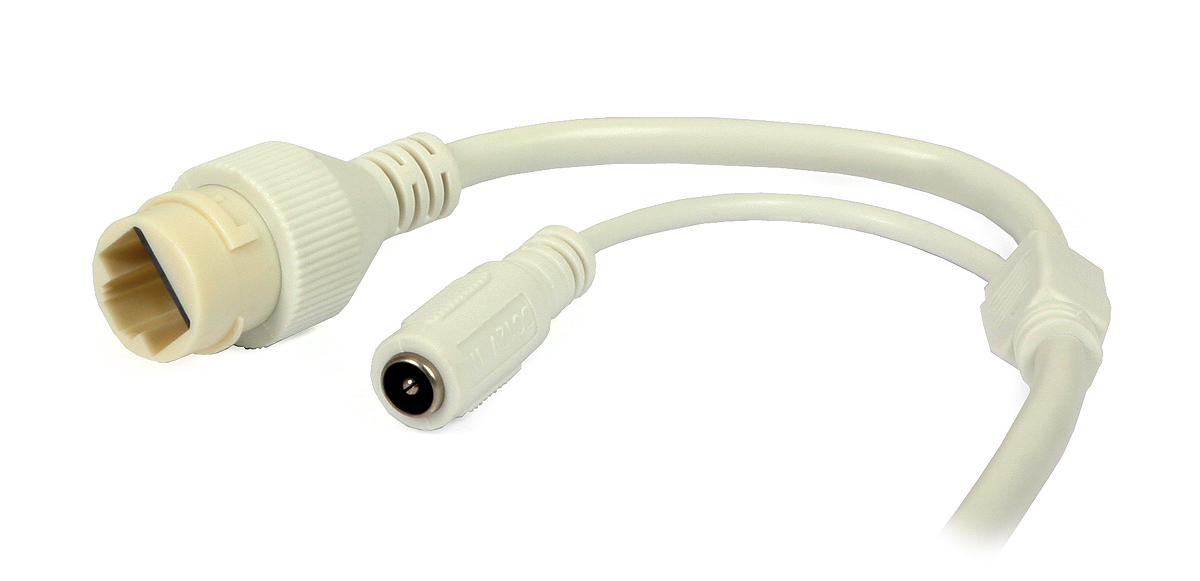

View of the connectors
View of the connectors

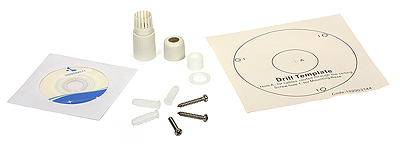

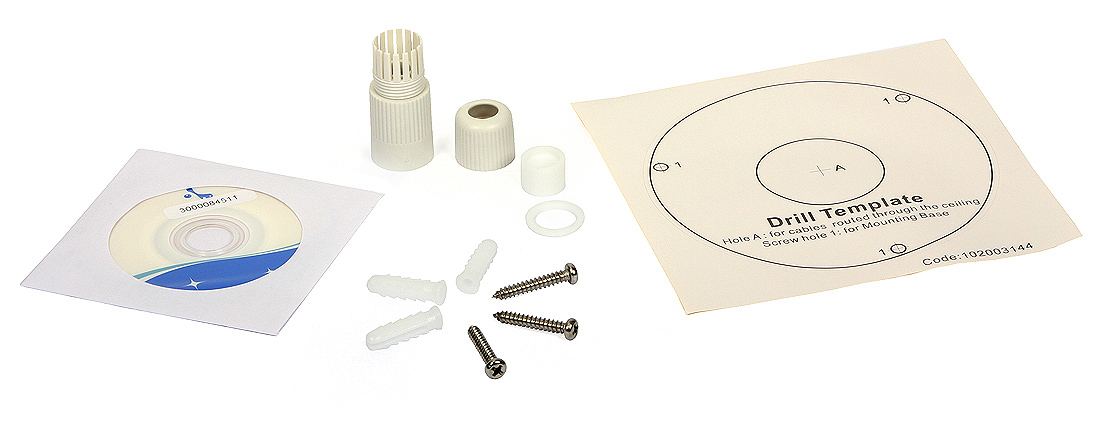

View of the accessories
View of the accessories

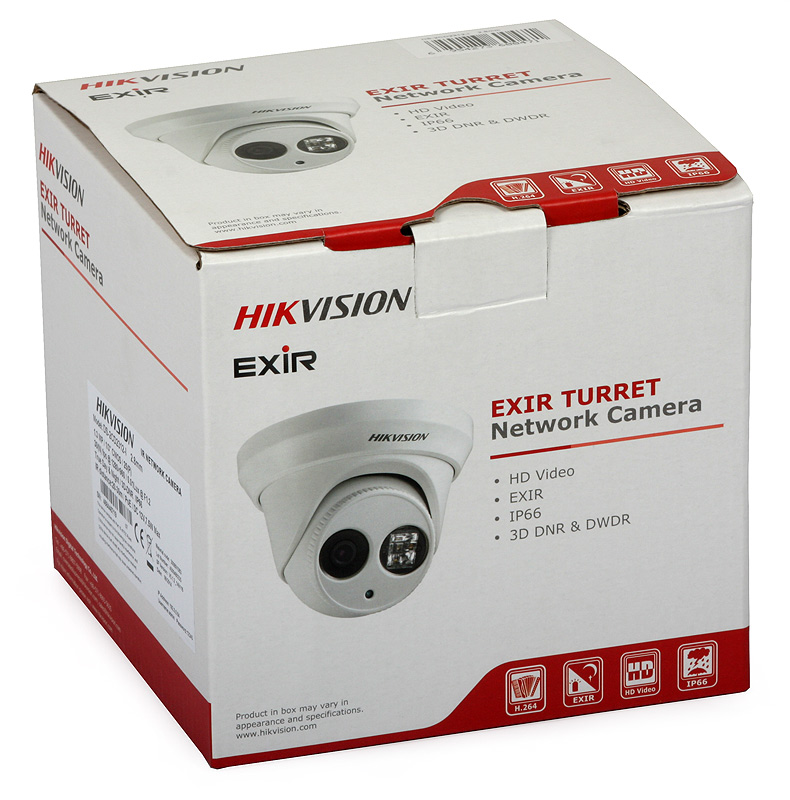

View of the packaging
View of the packaging
Key features
  • Resolution: 4 MP (2688x1520)
  • Image processing functions: 3D-DNR, WDR, BLC
  • WDR (hardware): 120 dB
  • Even IR lighting (EXIR) with range up to 30 m
  • Intelligent image analysis (virtual line crossing, intrusion detection)
  • Regions of interests (ROI)
  • H.264 / H.264+ / MJPEG compression
  • Mechanically switching IR filter
  • IP66 rating
  • Power: 12 VDC or PoE (802.3af)
The DS-2CD2342WD-I K1744 camera offers excellent parameters for affordable price. The dome camera has been equipped with high quality 4 MP (2688x1520) CMOS sensor providing perfect video even in low-light conditions. The camera has intelligent analysis functions such as line crossing and intruder detection in a specific area. The user can setup regions of interest (ROI) - parts of the image with increased video transmission parameters.
The user can select H.264, H264+, or MJPEG video compression. In the case of the H.264+ compression, the data stream is additionally minimized for static scenes, without noticeable loss of image quality, which saves the disk space.
The camera can operate outdoors or indoors. Its housing with high ingress protection rating (IP66) protects the electronics against adverse weather conditions. The built-in IR illuminator has a range of up to 30 m. The camera can be powered with a 12 VDC power source or via PoE (802.3af).
Specifications
NameHIKVISION DS-2CD2342WD-I
CodeK1744
Video system
IP
Housing type
Dome
Compression
H.264/H.264+/MJPEG
Resolution2688 x 1520
Dual-streamYes
Frame rate
 20 fps at 2688 x 1520
25 fps at 1920x1080 or lower res.
Image sensor
1/3" Progressive Scan CMOS
Sensitivity 0.01 lx @F1.2 with AGC
0 lx in IR mode
Lens4 mm
Horizontal viewing angle
82o
Mechanically switching IR filter
Yes
IR range
up to 30 m
Brightness control
Yes
Sharpness control
Yes
Video processing
3D-DNR, WDR(120dB), BLC
GainAutomatic/Preset
Alarm events Motion detection, dynamic analysis, tampering
Intelligent image analysis
Yes
Line crossing
4 lines
Intruder detection
4 regions
ROIs
4 regions
RecordingRemote FTP server, NAS server
Network interface
RJ-45 10/100Base-T
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Supported standards
Onvif, PSIA,CGI, ISAPI
Power12 VDC ± 10%
PoE IEEE 802.3af
Power consumption
Max 7.5 W
Startup temperature range
-10°C ... 40°C
Operating temperature range
-30°C ...  60°C
Dimensionsø127 x 97 mm
Weight0.67 kg
