Ceiling IP Camera: Hikvision DS-2CD2532F-IS (3MP, 2.8mm, 0.07 lx, IR up to 10m, alarm IN/OUT)

Code: K1723

Be the first to review this product

Availability: In stock

Including VAT 448.24 EUR Disc. 0 %

Details

Array
General view of the camera
General view of the camera
View of the connectors
View of the connectors

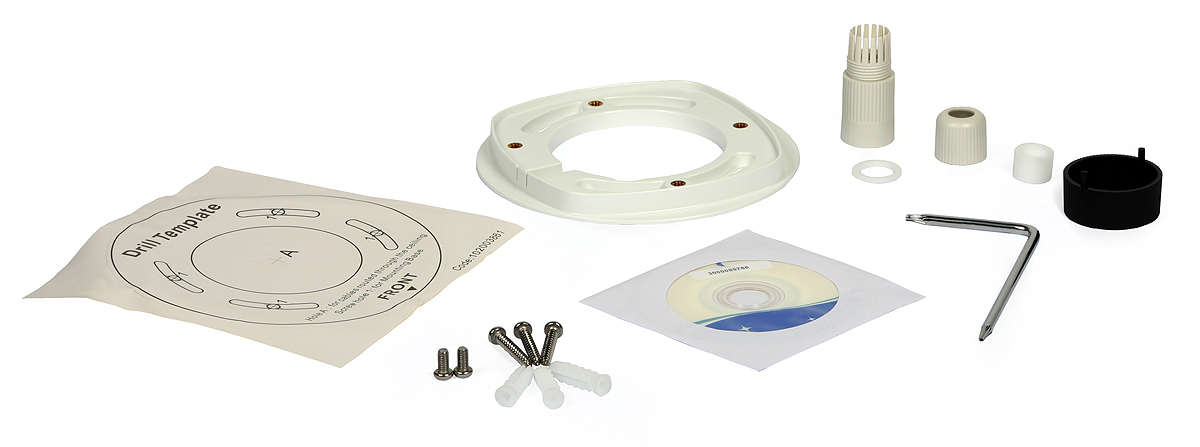

The included accessories, among others, the cable fitting for protecting against water penetration
The included accessories, among others, the cable fitting for protecting against water penetration
View of the packaging
View of the packaging
The DS-2CD2532F-IS K1723 camera comes from a new series of Hikvision products - HiWatch. This series of low-budget devices, IP cameras and IP NVRS, is dedicated for anyone who wants to build low-cost high-resolution IP CCTV system. The DS-2CD2532F-IS ceiling camera has been equipped with high quality 3 MP CMOS sensor providing perfect video even in low-light conditions. A special feature of this model is small size - the diameter is only 10 cm.
Thanks to H.264 compression, the data stream is minimized. The user can configure two independent streams (primary and secondary), as well as choose H.264 or MJPEG compression and limit the bandwidth within 32 kb/s to 16 Mb/s range.
The camera can operate outdoors or indoors. Its housing with high ingress protection rating (IP66) protects the electronics against adverse weather conditions. The built-in IR illuminator has a range of up to 10 m. The camera is equipped with alarm input/output and microphone. There are two power supply options available: 12 VDC or PoE (802.3af).
Key features:
  • Resolution: 3 MP (2048x1536)
  • Functions: 3DDNR, DWDR, BLC
  • IP rating: IP66
  • IR range: up to 10 m
  • mechanically switching IR filter
  • one ROI
  • line crossing detection
  • zone violation detection
Specifications
NameHIKVISION DS-2CD2532F-IS
CodeK1723
TypeCeiling
Compression
H.264/MJPEG
Resolution2048x1536
Dual-streamYes
Frame rate
25 fps at 1920x1080 or lower res.
20 fps at 2048x1536
Image sensor
1/3" Progressive Scan CMOS
Sensitivity 0.07 lx @F1.2 with AGC
0 lx in IR mode
Focal length2.8 mm
Horizontal viewing angle
86o
Mechanically switching IR filter
Yes
Brightness control
Yes
Sharpness control
Yes
GainAutomatic/Preset
Alarm events Motion detection, dynamic analysis, tampering
RecordingRemote FTP server, NAS server
Alarm IN/OUT
 1/1
Built-in microphone  YES
Network interface
RJ-45 10/100Base-T
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
ONVIFYes
Power12 VDC ± 10%
PoE IEEE 802.3af
Power consumption
max 5 W
Startup temperature range
-10°C ... 40°C
Operating temperature range
-30°C ...  60°C
Dimensions100 x 97 x 56 mm
Weight350 g
