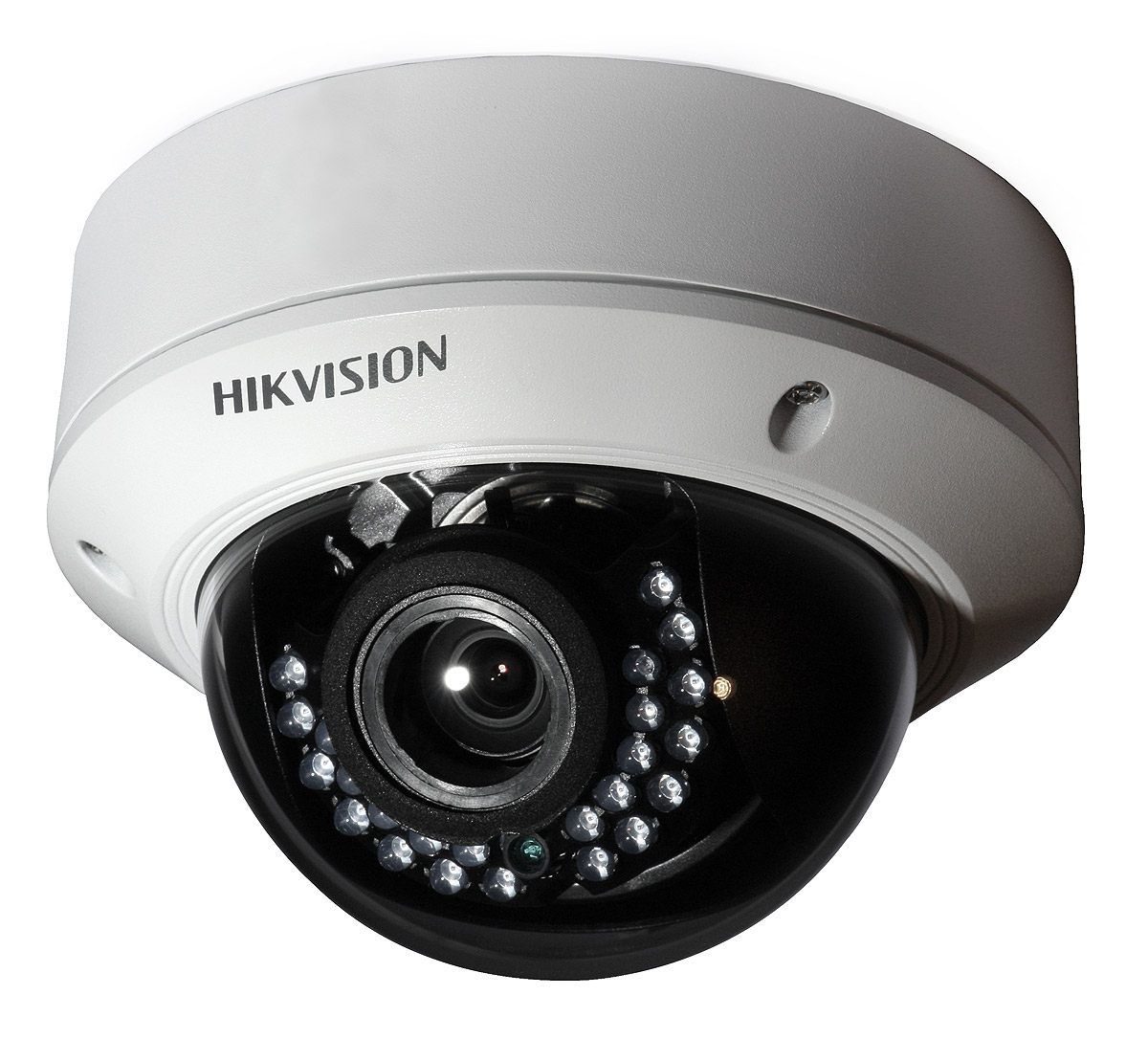

The DS-2CD2732F-IS K1739 camera comes from a new series of Hikvision products - HiWatch. This series of low-budget devices, IP cameras and IP NVRS, is dedicated for anyone who wants to build low-cost high-resolution IP CCTV system. The DS-2CD2532F-IS ceiling camera has been equipped with high quality 3 MP CMOS sensor providing perfect video even in low-light conditions.
Thanks to H.264 compression, the data stream is minimized. The user can configure two independent streams (primary and secondary), as well as choose H.264 or MJPEG compression and limit the bandwidth within 32 kb/s to 16 Mb/s range.
The camera can operate outdoors or indoors. Its housing with high ingress protection rating (IP66) protects the electronics against adverse weather conditions. The built-in IR illuminator has a range of up to 20 m. The camera is equipped with alarm input/output and audio input/output. There are two power supply options available: 12 VDC or PoE (802.3af).
The camera also has slot for an SD card. In connection with Hikvision IP NVRs, the ANR (Automatic Network Replenishment) solution developed by Hikvision company limits the recording on the card only to the periods of problems with connectivity between the camera and the NVR. After the end of the failure, the emergency recordings are automatically transferred to the NVR and synchronized with the previous ones. This feature significantly increases the reliability of the video surveillance system.
Key features:
- Resolution: 3 MP (2048x1536)
- Functions: 3DDNR, DWDR, BLC
- IP rating: IP66
- IR range: up to 20 m
- slot for SD/SDHC/SDXC card (up to 64 GB)
- mechanically switching IR filter
- one ROI
- line crossing detection
- zone violation detection
Specifications
| Name | HIKVISION DS-2CD2732F-IS |
| Code | K1739 |
| Type | Ceiling |
| Compression | H.264/MJPEG |
| Resolution | 2048x1536 |
| Dual-stream | Yes |
| Frame rate | 25 fps at 1920x1080 or lower res. 20 fps at 2048x1536 |
| Image sensor | 1/3" Progressive Scan CMOS |
| Sensitivity | 0.07 lx @F1.2 with AGC 0 lx in IR mode |
| Focal length | 2.8-12 mm |
| Horizontal viewing angle | 105o-32o |
| Mechanically switching IR filter | Yes |
| Brightness control | Yes |
| Sharpness control | Yes |
| Gain | Automatic/Preset |
| Alarm events | Motion detection, dynamic analysis, tampering |
| Recording | Remote FTP server, NAS server |
| Alarm IN/OUT | 1/1 |
| Audio IN/OUT | 1/1 |
| Network interface | RJ-45 10/100Base-T |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| ONVIF | Yes |
| Power | 12 VDC ± 10% PoE IEEE 802.3af |
| Power consumption | 5 W (max 7W with IR illum.) |
| Startup temperature range | -10°C ... 40°C |
| Operating temperature range | -30°C ... 60°C |
| Dimensions | Φ140 × 99.9 mm |
| Weight | 1 kg |
| Remarks | IP66, IK10, SD card slot |
