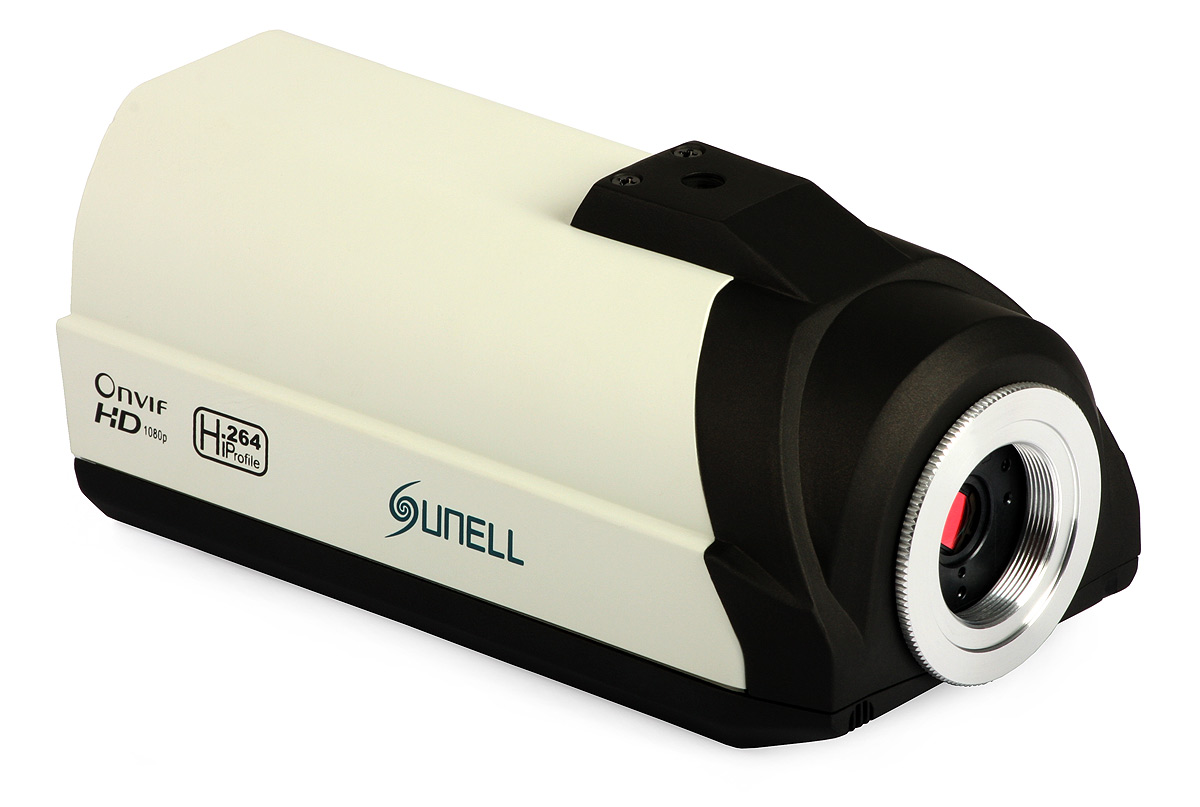

Sunell SN-IPC54/14EDN camera is compatible with ONVIF standard (Open Network Video Interface Forum). ONVIF is an open industry forum aimed at coordinating efforts to set common, global standard for recording and transmitting video in IP CCTV systems. ONVIF-compliant devices ensure flexibility in building video surveillance systems due to interoperability of equipment from various manufacturers. By standardizing the digital interfaces of the IP CCTV equipment (compression and transmission of video streams, device configuration and control procedures, event handling etc.), the user is given an easy to manage and uniform platform.

Web access to a video stream from the camera performed via IE requires installation of ActiveX controls. Alternative browsers (Firefox, Opera, Chrome) do not need any plug-ins or patches - thanks to Flash technology the image is directly displayed by the respective browser.

The Sony Exmor IMX122 1/2.8" image sensor implemented in this camera is dedicated for professional applications requiring high image quality in low-light environments. The sensor has diagonal of 6.4 mm and 2.43 million effective pixels. In comparison with Sony 1/3" HD1080p sensors, its sensitivity is increased by 6dB, and S/N ratio higher by 8 dB.

Compared with a standard VGA camera, K1634 provides about six times more pixels. This means much more detailed images that ensure a new level of video surveillance. Any part of such an image can be effectively enlarged (both during live monitoring and playing back archives).

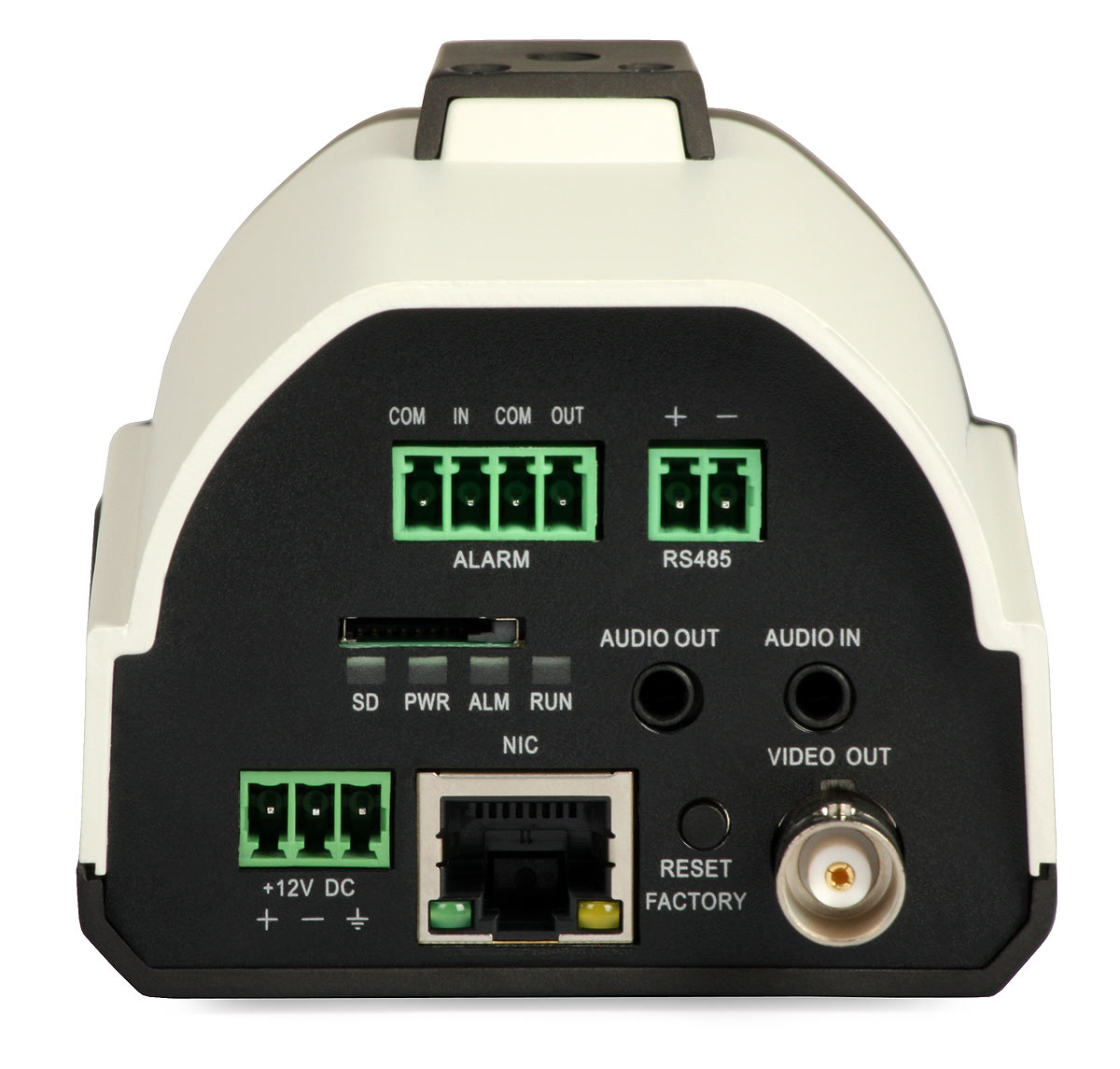

SN-IPC54/14EDN supports event handling system, which in the case of motion detection or an alarm input signal can start recording the video stream on an inserted SD card or a hard drive of a computer. The camera can be powered by PoE (IEEE 802.3af), which reduces wiring, or by 12 VDC.

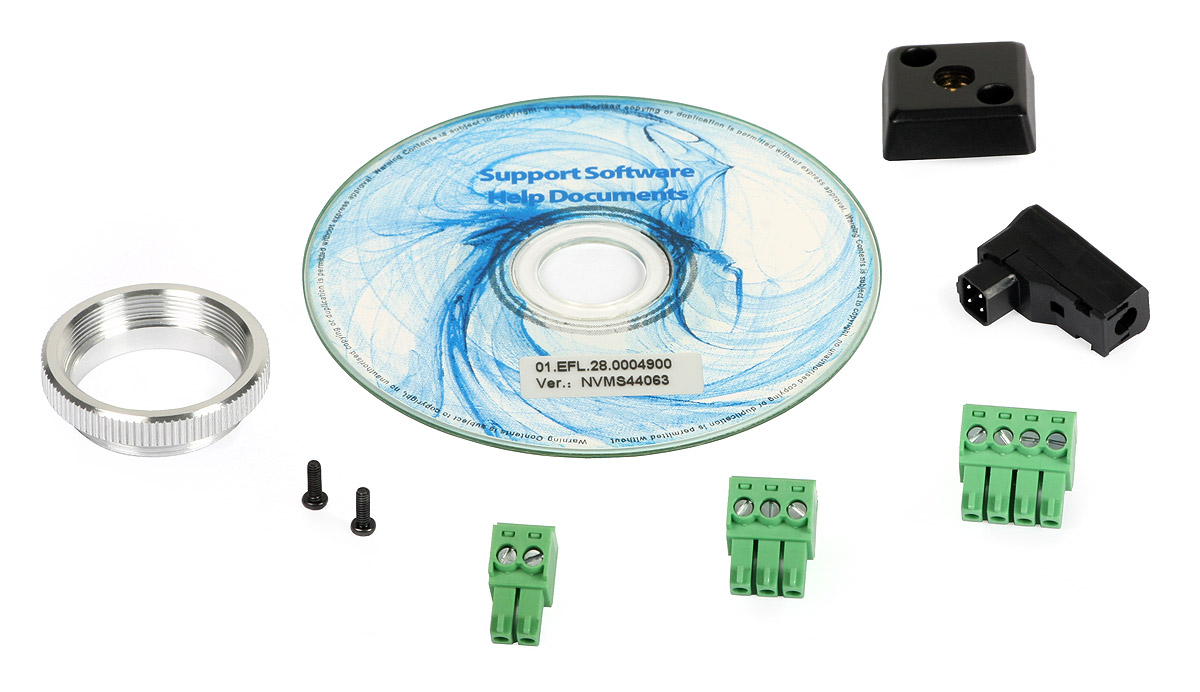

The resource CD-ROM provides free NVMS NVR software for configuring and managing up to 36 Sunell IP cameras. The utility automatically searches the cameras in the Ethernet network and allows for quick implementation of the monitoring system based on Sunell equipment.

Some functions of the software:

Sunell IP cameras are fully compliant with commercial NVR software NUUO K3104, K3108, K3116, K3132, K3164, Digifort K3001, K3002, K3003, K3004, and with standalone NVRs K4108, K4116, K4204.
