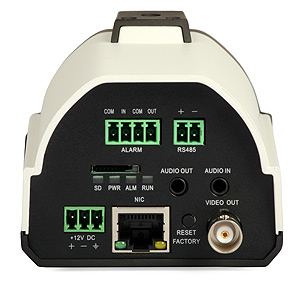

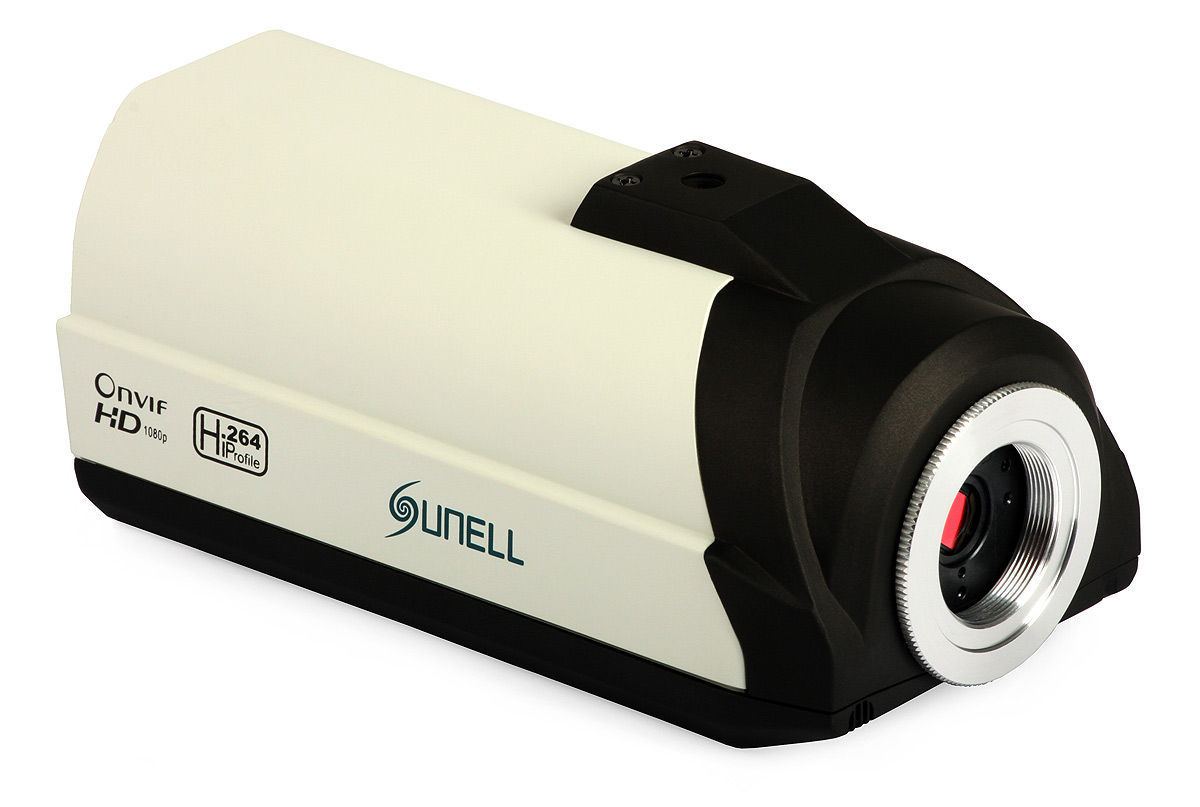

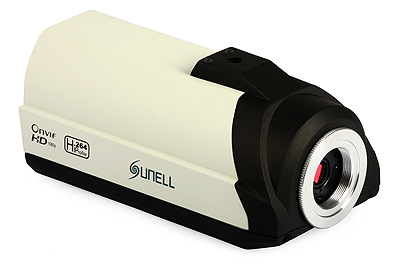

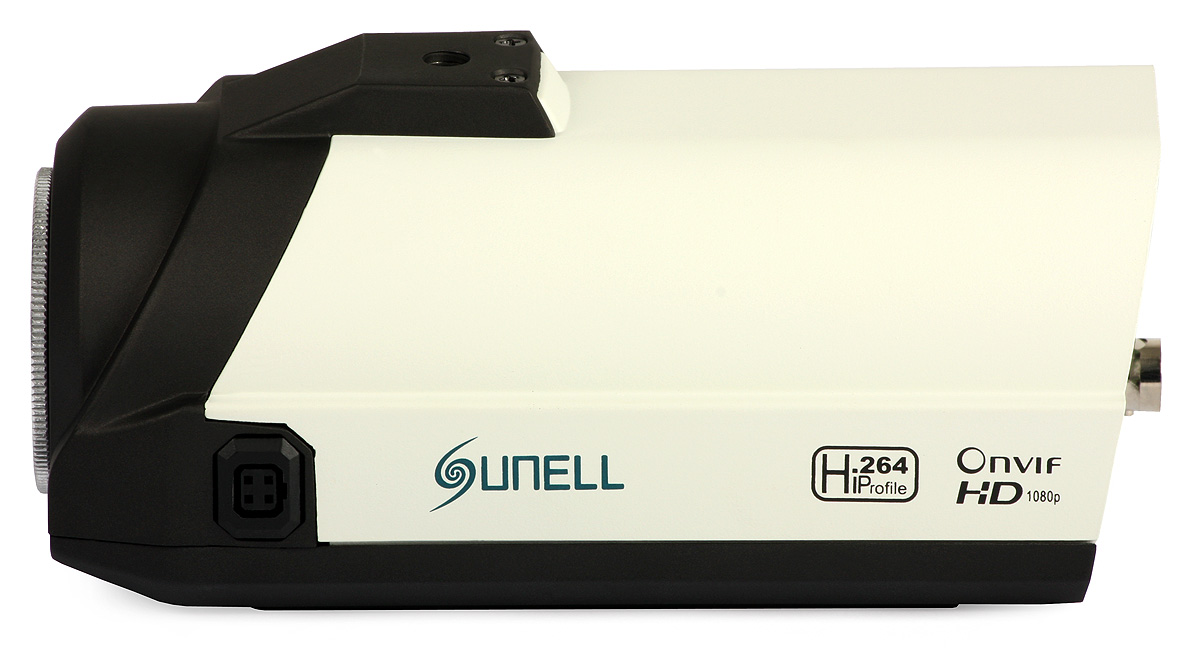

The Sunell SN-IPC54/14EDN box IP camera is equipped with SONY EXMOR 1/2.9" CMOS image sensor with resolution of 1920x1080 pixels (2 MP). The camera has been designed for indoor operation in professional IP CCTV systems based on NVRs. The camera provides two data streams (main stream and sub-stream) and can use H.264 or MJPEG compression method. The audio input allows for connection of a microphone, and the audio output can be connected to an active loudspeaker (with an amplifier). Such a solution enables two-way voice communication, audio monitoring of the spot, audio recording.
The signal from the BNC video output provided to a test monitor allows for convenient adjustments of focal length and focus. The camera can be powered conventionally with a 12 VDC power source or via PoE (802.3af).

Web access to a video stream from the camera performed via IE requires installation of ActiveX controls. Alternative browsers (Firefox, Opera, Chrome) do not need any plug-ins or patches - thanks to Flash technology the image is directly displayed by the respective browser. Additionally, the camera can be operated with NVMS software for management and control of Sunell devices in IP networks. The mobile access to the camera via an Android smartphone is possible via free inView app available in Google Play.
