Ceiling IP Camera: Hikvision DS-2CD2322WD-I (2MP, 2.8mm, 0.01 lx, IR up to 30m)

Code: K1741

Be the first to review this product

Availability: In stock

Including VAT 349.66 EUR Disc. 0 %

Details

Array

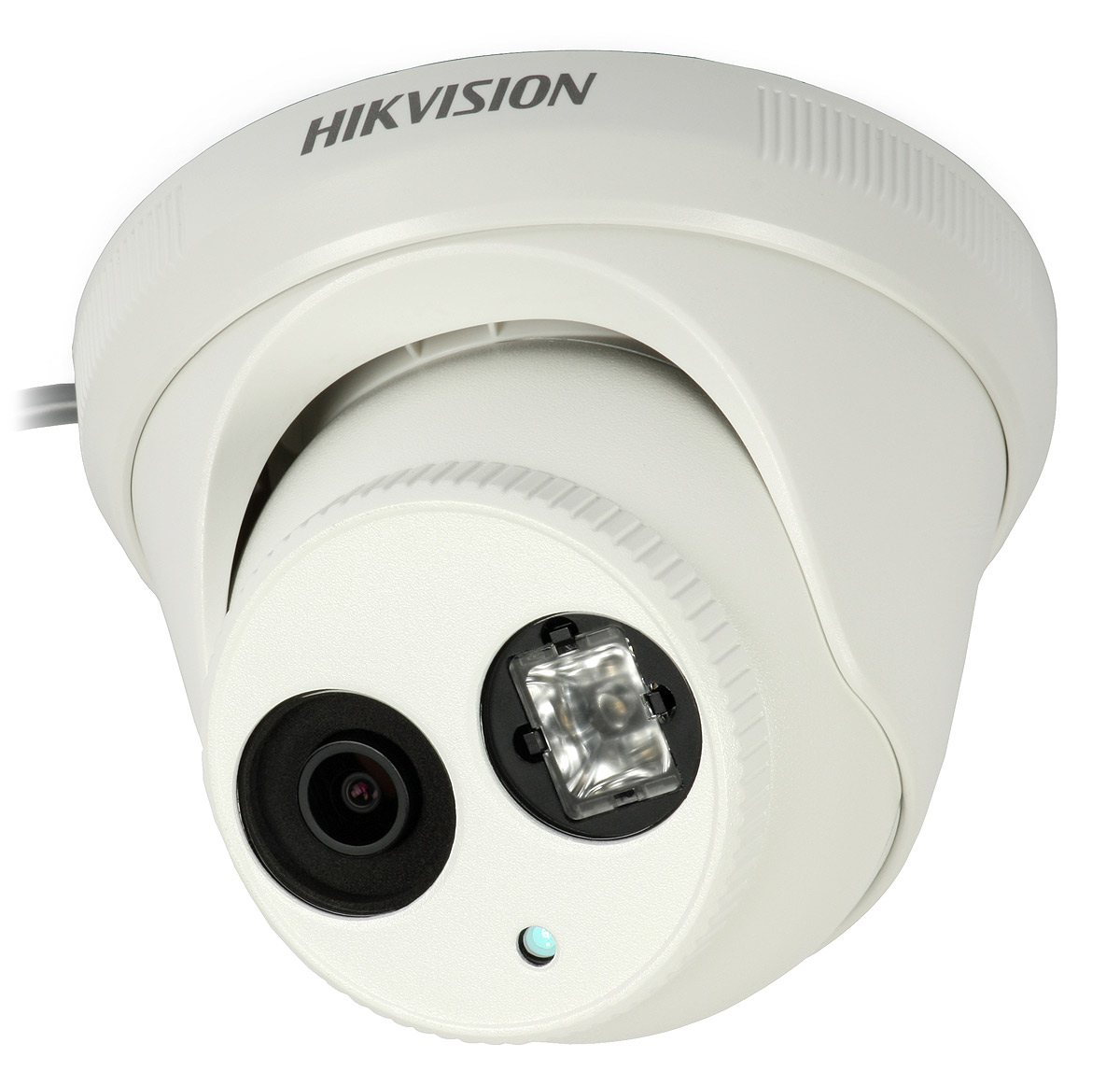

View of the camera
View of the camera

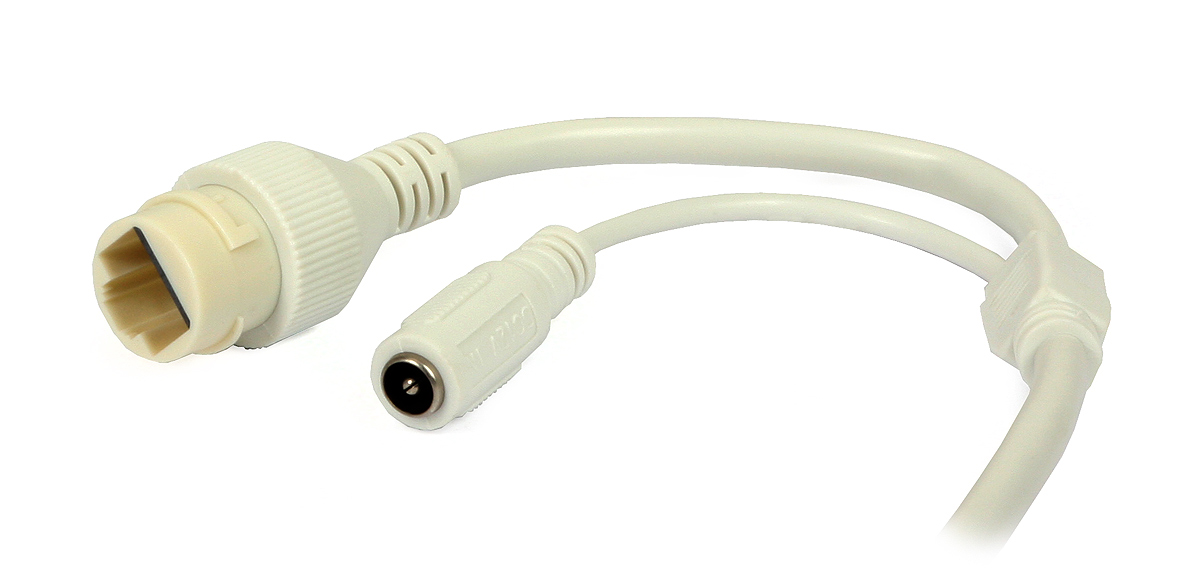

View of the connectors
View of the connectors

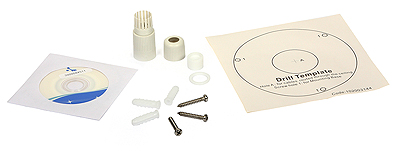

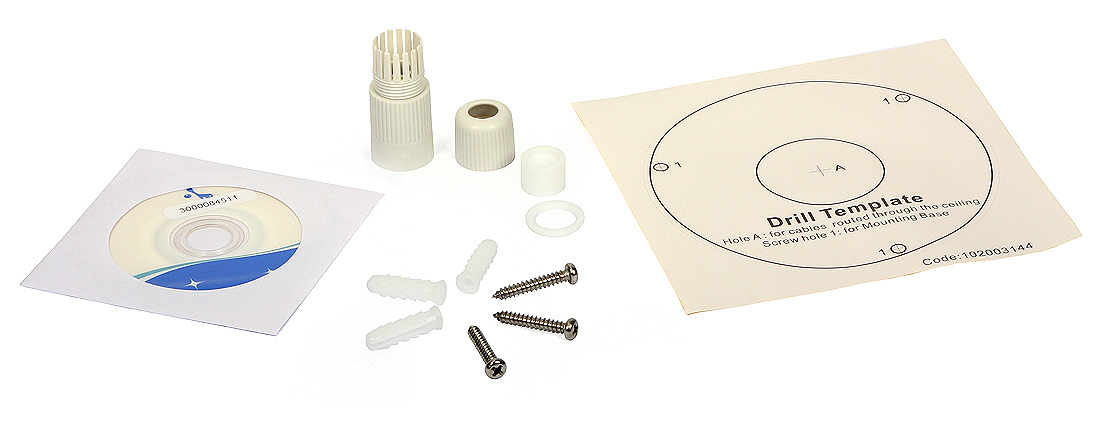

View of the accessories
View of the accessories

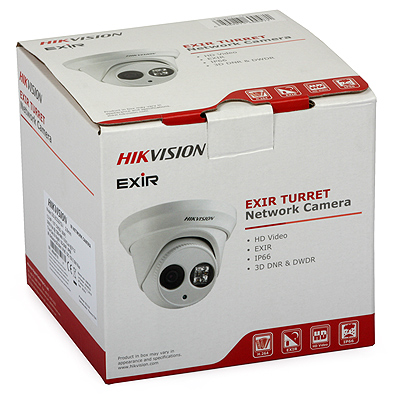

View of the packaging
View of the packaging
Key features
  • Resolution: 2 MP (1920x1080)
  • Image processing functions: 3D-DNR, WDR, BLC
  • WDR (hardware): 120 dB
  • Even IR lighting (EXIR) with range up to 30 m
  • Intelligent image analysis (virtual line crossing, intrusion detection)
  • Regions of interests (ROI)
  • H.264 / H.264+ / MJPEG compression
  • Mechanically switching IR filter
  • IP66 rating
  • Power: 12 VDC or PoE (802.3af)
The DS-2CD2322WD-I K1741 camera offers excellent parameters for affordable price. The dome camera has been equipped with high quality 2 MP (1920x1080) CMOS sensor providing perfect video even in low-light conditions. The camera has intelligent analysis functions such as line crossing and intruder detection in a specific area. The user can setup regions of interest (ROI) - parts of the image with increased video transmission parameters.
The user can select H.264, H264+, or MJPEG video compression. In the case of the H.264+ compression, the data stream is additionally minimized for static scenes, without noticeable loss of image quality, which saves the disk space.
The K1741 camera camera can be mounted indoors or outdoors. Its housing with high ingress protection rating (IP66) protects the electronics against adverse weather conditions. The built-in powerful IR illuminator has a range of up to 50 m. The sources based on the new light-emitting technology have up to 30% higher efficiency compared with traditional LED arrays. Additionally, they produce LED light in the form of a rectangle in order to fit the camera's field of view. This further improves the efficiency of the lighting and eliminates the excessive light intensity in the central part of the scene, typical for majority of IR illuminators. Exir illuminators ensure much better luminance uniformity, including the corners of the scene, at the same time reducing light pollution in the surrounding environment.
Array
Ezviz (EasyVision) is a free service which can be activated in Hikvision NVRs and IP cameras. This free service allows less advanced users to easily access to the video from the cameras via the Internet, without forwarding router ports. To enable remote access, the user should only connect the device to the network (which requires a valid IP address and appropriate gateway settings). The next step is the creation of user account at the www.ezviz7.com website. The account can accommodate devices in a local area network (with activated Ezviz service). The devices will be available from anywhere via the Internet.
Specifications
NameHIKVISION DS-2CD2322WD-I
CodeK1741
Video system
IP
Housing type
Dome (turret)
Compression
H.264/H.264+/MJPEG
Resolution1920 x 1080
Dual-streamYes
Frame rate
25 fps at 1920x1080 or lower res.
Image sensor
1/3" Progressive Scan CMOS
Sensitivity 0.01 lx @F1.2 with AGC
0 lx in IR mode
Lens2.8 mm
Horizontal viewing angle
106o
Mechanically switching IR filter
Yes
IR range
up to 30 m
Brightness control
Yes
Sharpness control
Yes
Video processing
3D-DNR, WDR(120dB), BLC
GainAutomatic/Preset
Alarm events Motion detection, dynamic analysis, tampering
Intelligent image analysis
Yes
Line crossing
4 lines
Intruder detection
4 regions
ROIs
4 regions
RecordingRemote FTP server, NAS server
Network interface
RJ-45 10/100Base-T
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Supported standards
Onvif, PSIA,CGI, ISAPI
Power12 VDC ± 10%
PoE IEEE 802.3af
Power consumption
Max 7.5 W
Startup temperature range
-10°C ... 40°C
Operating temperature range
-30°C ...  60°C
Dimensionsø127 x 97 mm
Weight0.67 kg
