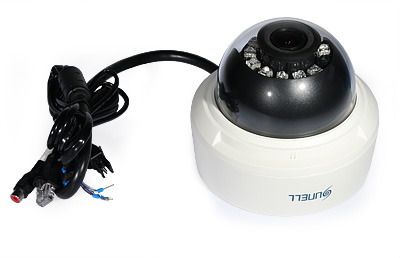

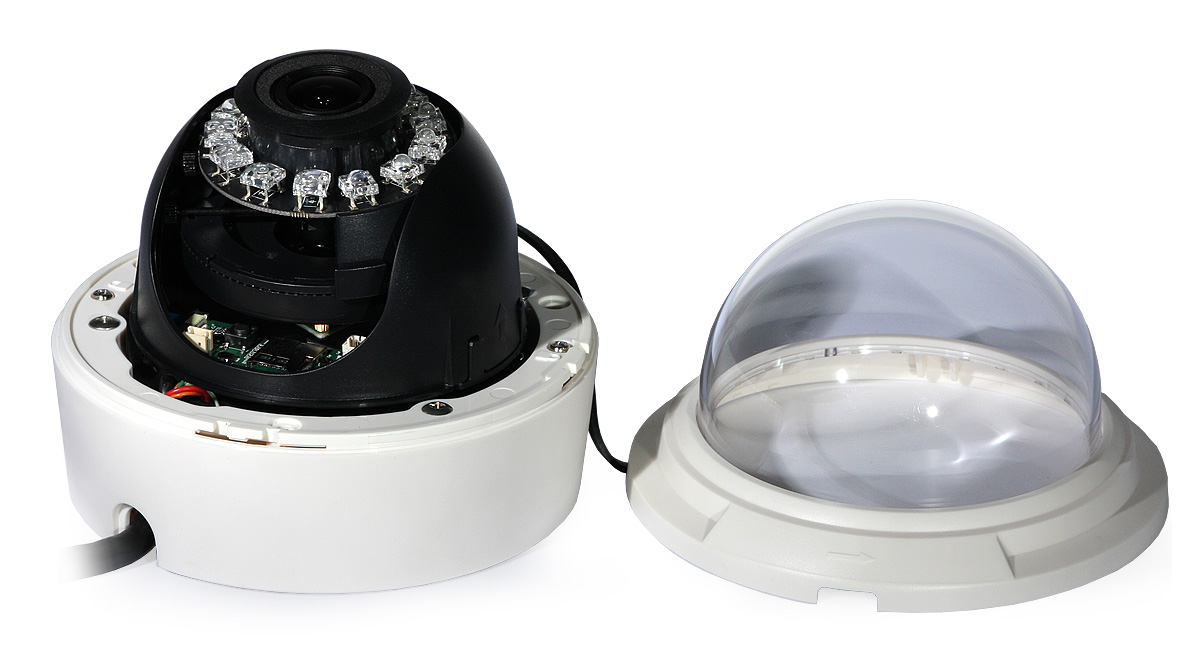

The megapixel IP camera SN-IPD54/12VDR K1695 employs image sensor with a resolution of 1920 x 1080 pixels, which can operate without visible light (0 lx - ICR filter removed and IR illuminator switched on). The camera is equipped with 2.8 - 12 mm @ F1.2 varifocal lens allowing the adjustment of the field of view to operational conditions. With Full HD resolution, APTINA / TI sensor and IR illuminator, the camera is able to capture nearly 5-times more pixels than best analog cameras, even in very poor lighting conditions. A vandal-proof housing protects the camera against any acts of vandalism and accidental or deliberate destruction, ensuring uninterrupted coverage of events.

Web access to a video stream from the camera performed via IE requires installation of ActiveX controls. Alternative browsers (Firefox, Opera, Chrome) do not need any plug-ins or patches - thanks to Flash technology the image is directly displayed by the respective browser.

In any resolution (1920x1080, 1280x720, 640x360) the image can be captured and transmitted at frame rate of 25 fps, which provides possibility of using the actual image parameters depending only on the needs of the user and the bandwidth of the connection (e.g. the recording may be performed in the highest resolution, live viewing may be based on the intermediate or the lowest resolution).

The camera has the following adjustments:

The camera has been equipped with the following connectors/interfaces:

Thanks to Real Time Streaming Protocol (RTSP), the camera can simultaneously broadcast the video to multiple users via streaming servers.

SN-IPD54/12VDR camera generates/transmits the following alarms:

The megapixel image sensor (1920x1080), H.264 or MJPEG compression, ability to operate day and night (also in dark rooms), and vandal proof housing - are the reasons that the SN-IPD54/12VDR camera is an ideal device for indoor applications in various industries, commerce, banking, hotel-keeping, education institutions etc.

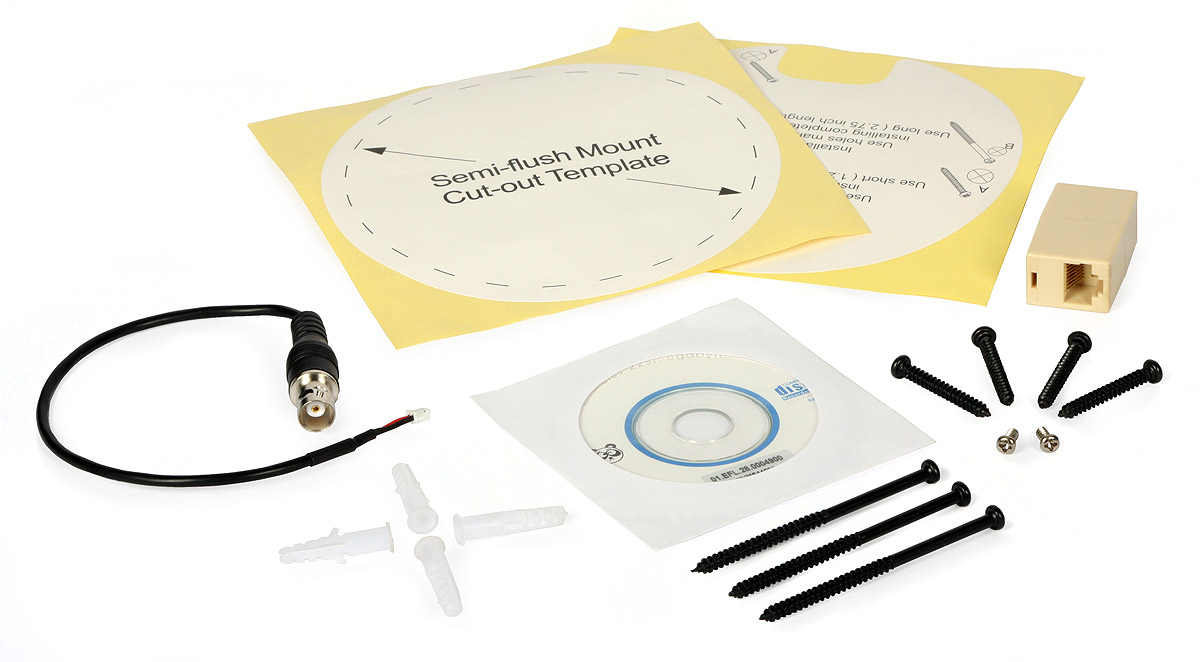

The resource CD-ROM provides free NVMS NVR software for configuring and managing up to 36 Sunell IP cameras. The utility automatically searches the cameras in the Ethernet network and allows for quick implementation of the monitoring system based on Sunell equipment.

Some functions of the software:

Sunell IP cameras are fully compliant with commercial NVR software NUUO K3104, K3108, K3116, K3132, K3164, Digifort K3001, K3002, K3003, K3004, and with standalone NVRs K4108, K4116, K4204.

(*) - the IR reflector range depends on the type of illuminated objects/surfaces (reflectance in the infrared range).
