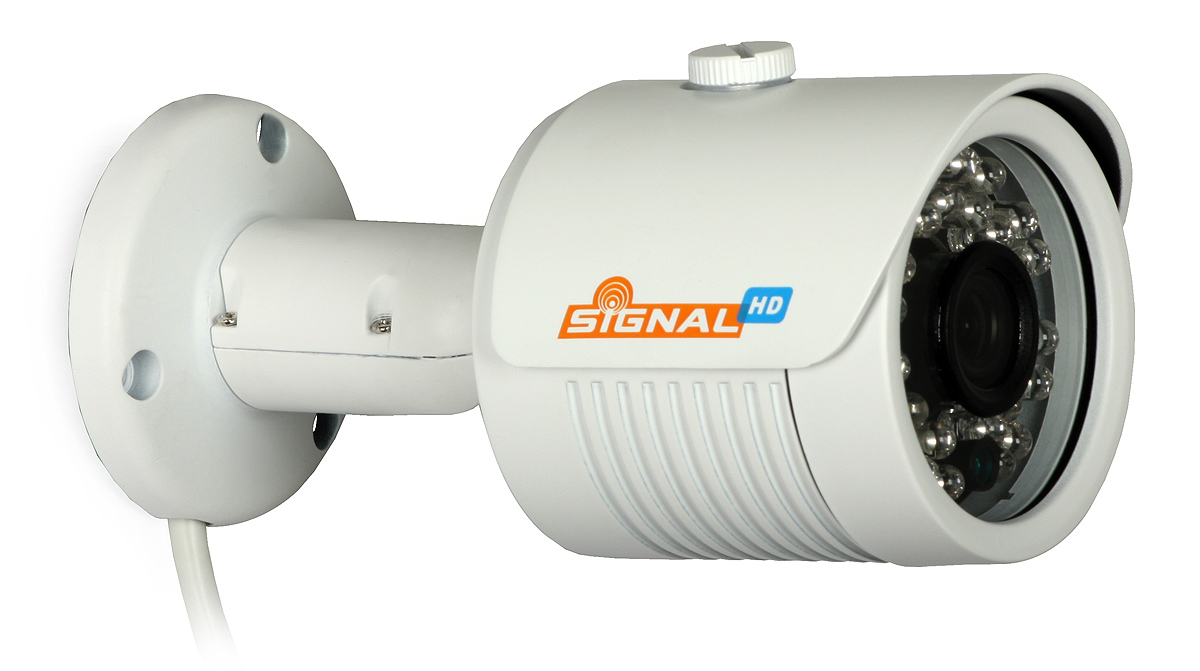

View of the camera in working position

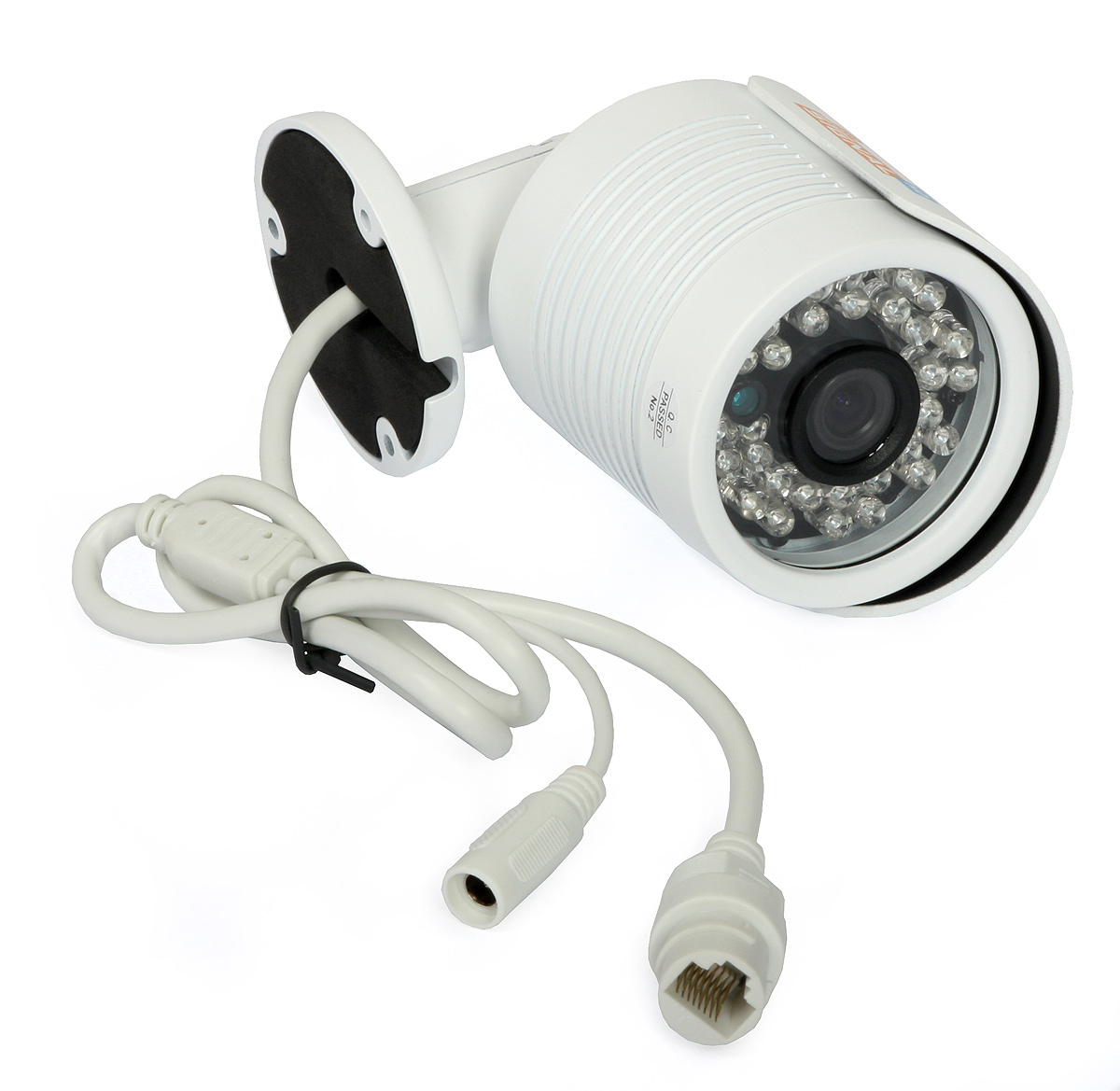

Bottom view

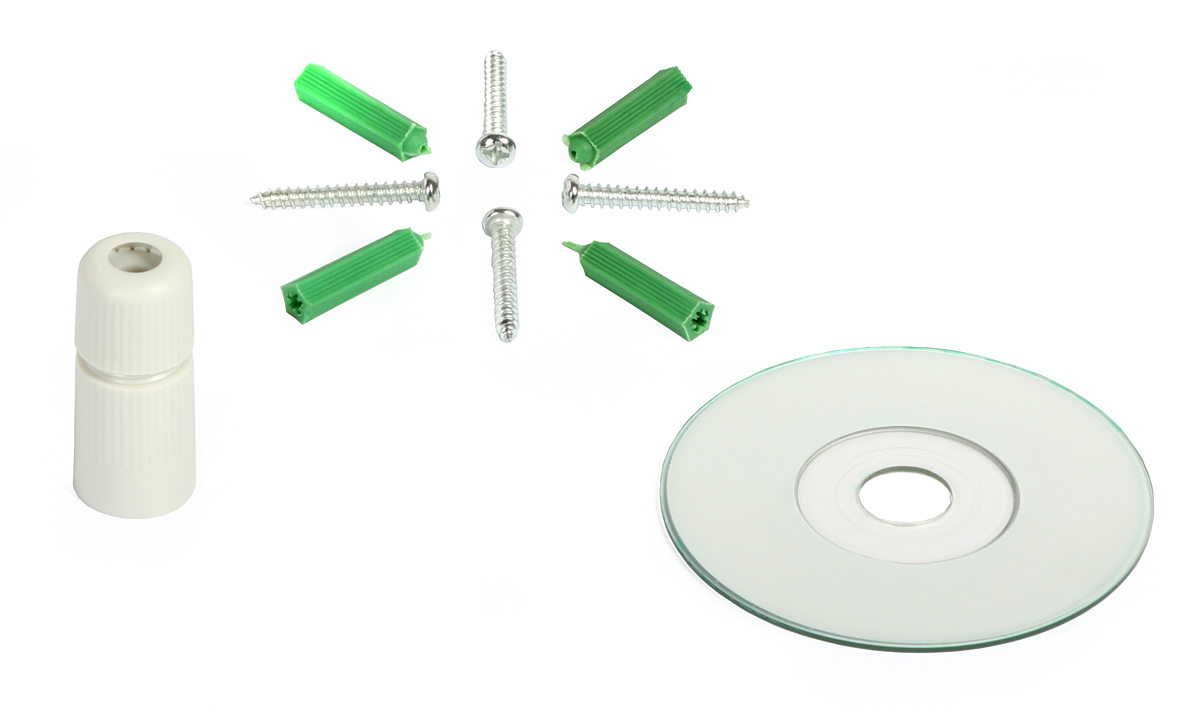

The included accessories

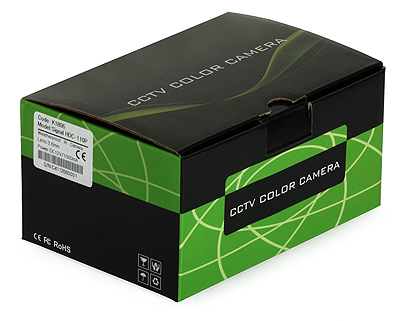

View of the packaging

Key features

resolution of 1920x1080 - Full HD,
sensitivity 0.1 lx (B/W mode),
ICR filter,
1/2.8" 2.4 MP SONY CMOS sensor,
frame rate of 30 fps,
access via Internet Explorer and free CMS app,
30 IR LEDs,
IP66 rating,
H.264 video compression,
three video streams,
support for ONVIF,
PoE option (802.3af 48V).

The Signal HDC-110P megapixel IP camera is equipped with 1/2.8" SONY CMOS sensor with resolution of 1920 x 1080 pixels (Full HD) and sensitivity of 0.1 lx (B/W). The focal length of the built-in varifocal lens is 3.6 mm.

The frame rate is adjustable (up to 30 fps), also in the highest resolution (1920x1080).

Apart from resolution and frame rate, the user can change a number of parameters:

image quality,
shutter speed,
encoding (CBR or VBR),
BLC,
max video bit rate.

The Signal HDC-110P camera supports the following alarm events:

motion detection,
network connection error.

When an alarm is triggered, the camera can send the video in AVI format to an email address or ftp server.

The resource CD-ROM provides free CMS software for configuring and managing up to 64 Signal IP cameras. The utility automatically searches the cameras in the Ethernet network and allows for quick and easy configuration of the monitoring system.

Some functions of the software:

video setting,
network configuring,
schedule and motion detection setting,
searching for and playing back recordings,
creating user accounts and assigning them access rights.

The camera is compatible with PoE 802.3af (48 V).

Specifications

Name	HDC-110P
Code	K1806
Compression	H.264
Supported video resolutions	1920 x 1080 pix (HD1080p) 720 x 576 pix (D1) 352 x 288 pix (CIF)
Number of video streams	3
Max frame rate	25 fps
Image sensor	1/2.8" CMOS SONY
DSP	HISILICON Hi3516C
Sensitivity	0 lx (IR ON)
Lens	3.6 mm
ICR filter	Yes
Camera OS	Linux
IR range	up to 25 m (*)
Alarm	Motion detection
SD slot	NO
Network interface	RJ-45 10/100Base-T
Protocols	RTSP, FTP, PPPOE, DHCP, DDNS, NTP, UPnP, SMTP, TCP/UDP
Support for ONVIF	Yes
Bit rate range	64-1200 kbps
IP rating	IP66
Power options	12 VDC / 550 mA PoE 802.3af (48V)
Power consumption	6.6 W
Startup temperature range	-20°C...+50°C
Dimensions	142x 68 x66 mm
Weight	0.5 kg
Compatible browser	Internet Explorer
Supported languages	English, French, German, Hungarian, Italian, Polish, Portuguese, Romanian, Spanish, Turkish

(*) - the IR reflector range depends on the type of illuminated objects/surfaces (reflectance in the infrared range).
