Compact IP Camera: HIkvision DS-2CD2010-I (1.3MP, 4mm, 0.01 lx, IR up to 30m)

Code: K1762

Be the first to review this product

Availability: Out of stock

Including VAT 252.77 EUR Disc. 0 %

Details

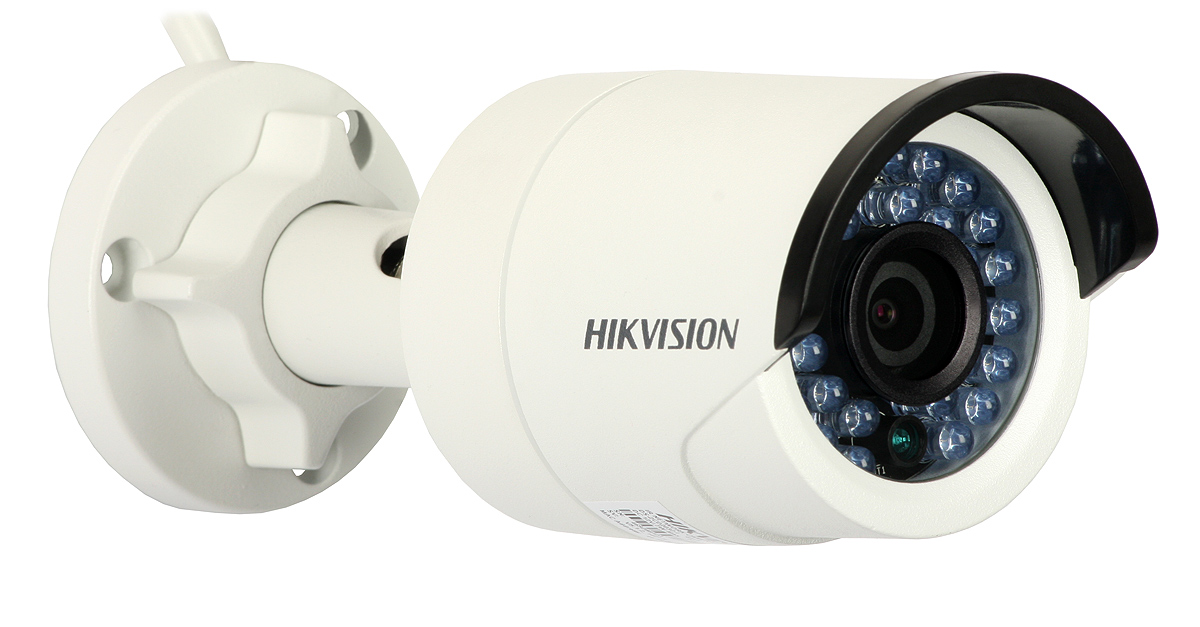

General view of the camera
General view of the camera

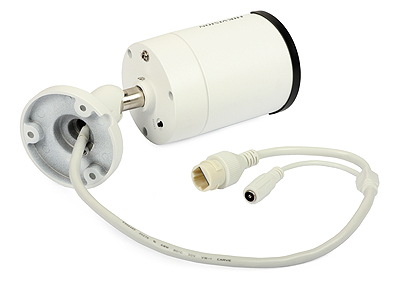

Rear view
Rear view

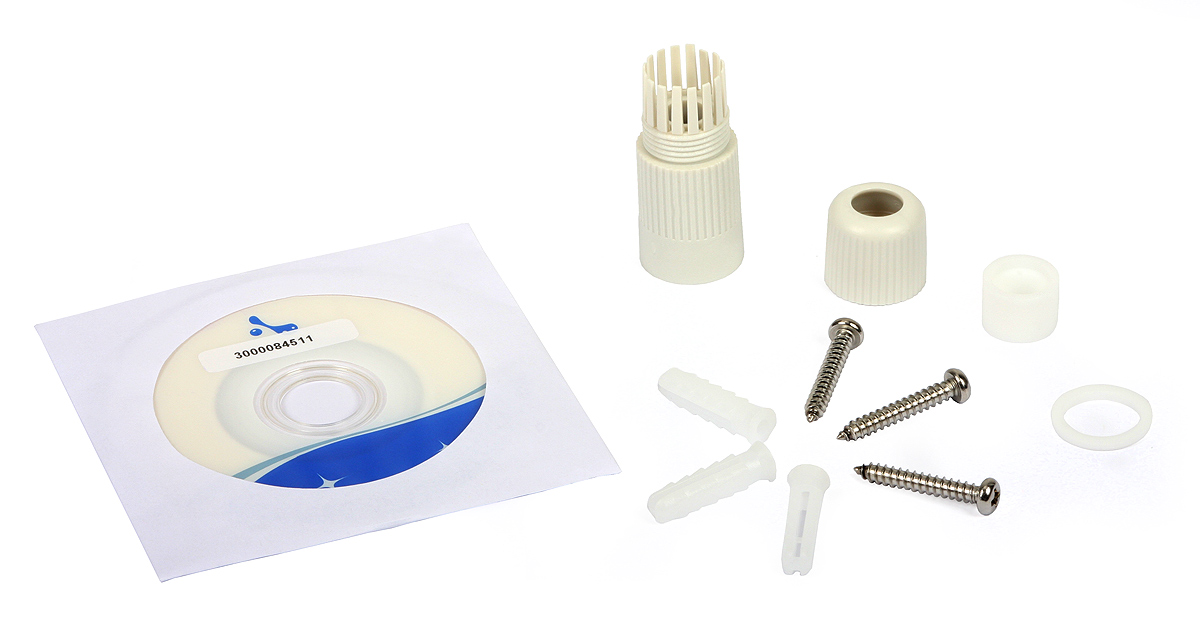

The included accessories, among others, cable fitting for protecting against water penetration
The included accessories, among others, cable fitting for protecting against water penetration
View of the packaging
View of the packaging
The DS-2CD2010-I K1762 camera comes from a new series of Hikvision products - HiWatch. This series of low-budget devices, IP cameras and IP NVRS, is dedicated for anyone who wants to build low-cost IP CCTV system. The DS-2CD2010-I camera has been equipped with high quality 1.3 MP CMOS sensor providing perfect video even in low-light conditions. A special feature of this model is small size - the length is only 14 cm.
Thanks to H.264 compression, the data stream is minimized. The user can configure two independent streams (primary and secondary), as well as choose H.264 or MJPEG compression and limit the bandwidth within 32 kb/s to 16 Mb/s range.
The DS-2CD2012-I compact camera can operate outdoors or indoors. Its housing with high ingress protection rating (IP66) protects the electronics against adverse weather conditions. The built-in IR illuminator has a range of up to 30 m. The camera can be powered with a 12 VDC power source or via PoE (802.3af).
Key features:
  • Resolution: 1.3 MP
  • Functions: 3DDNR, DWDR, BLC
  • IP rating: IP66
  • IR range: up to 30 m
  • Mechanically switching IR filter
Specifications
NameHIKVISION DS-2CD2010-I
CodeK1762
TypeCompact
Compression
H.264/MJPEG
Resolution1280x960
Dual-streamYes
Frame rate
25 fps
Image sensor
1/3" Progressive Scan CMOS
Sensitivity 0.01 lx @F1.2 with AGC
0 lx in IR mode
Focal length4 mm
Horizontal viewing angle
69o
Mechanically switching IR filter
Yes
Brightness control
Yes
Sharpness control
Yes
GainAutomatic/Preset
Alarm events Motion detection, dynamic analysis, tampering
RecordingRemote FTP server, NAS server
Network interface
RJ-45 10/100Base-T
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
ONVIFYes
Power12 VDC ± 10%
PoE IEEE 802.3af
Power consumption
5 W (max 7 W with IR)
Startup temperature range
-10°C ... 40°C
Operating temperature range
-30°C ...  60°C
Dimensions60.4 × 76.9 × 139.28 mm
Weight500 g
