Details

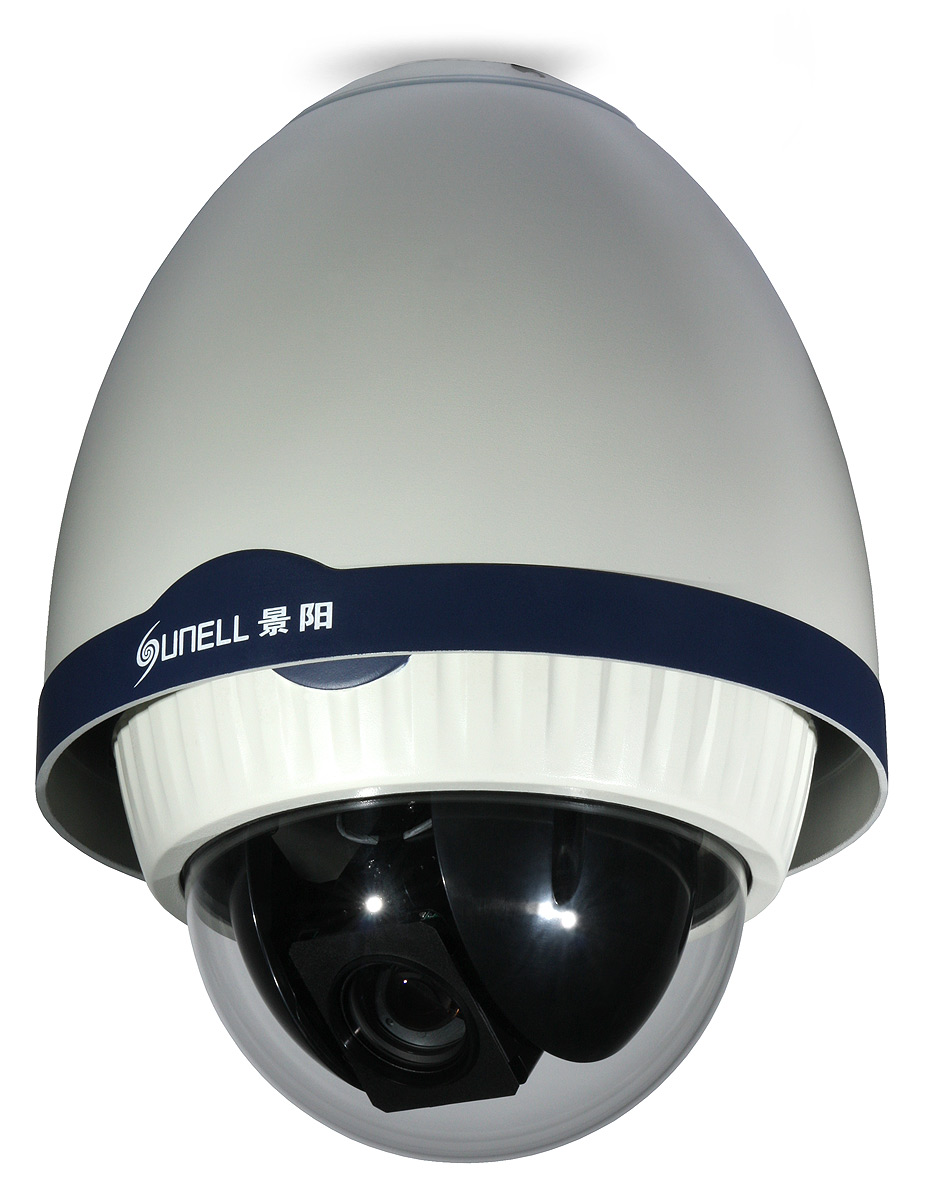

General view of the camera

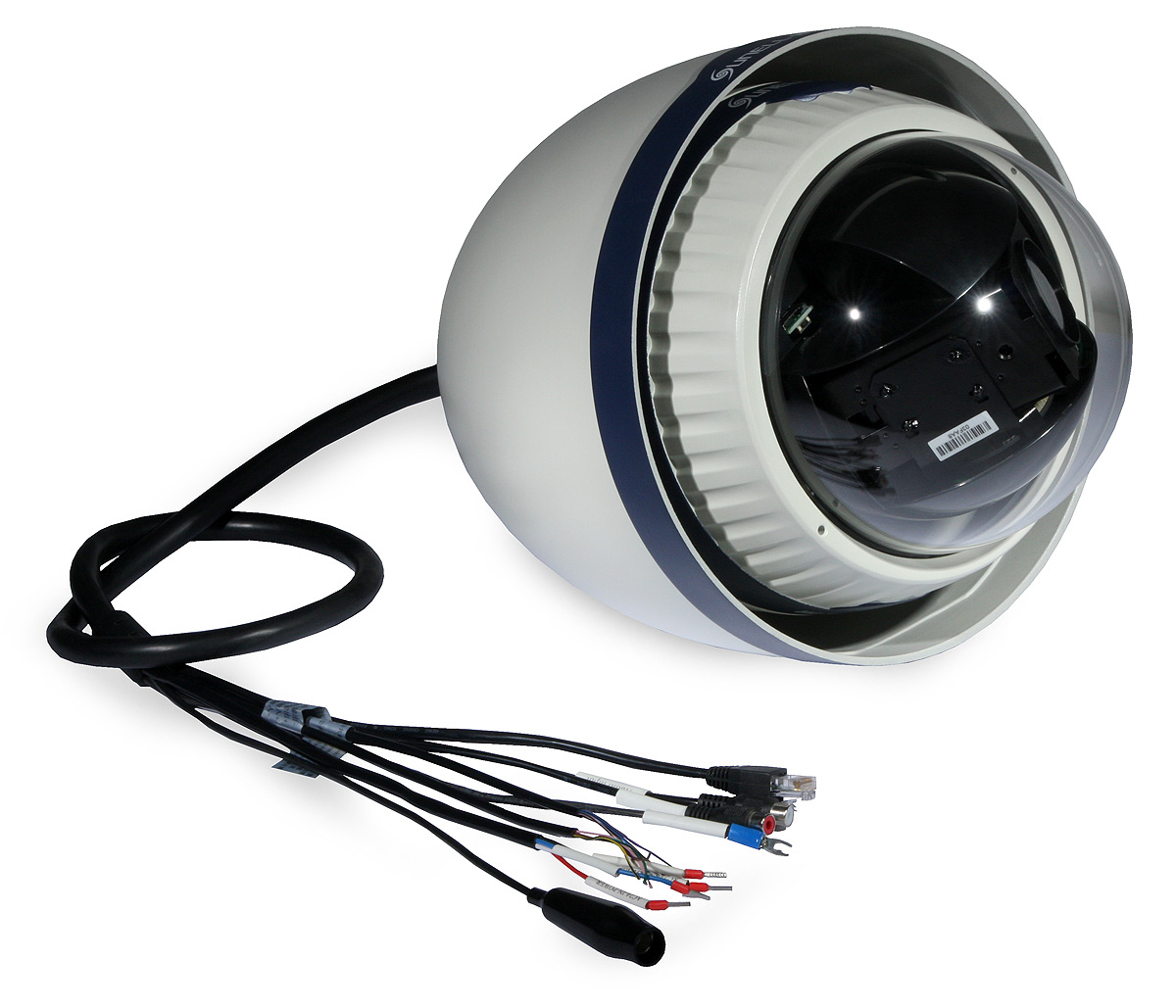

View of the camera with the cables

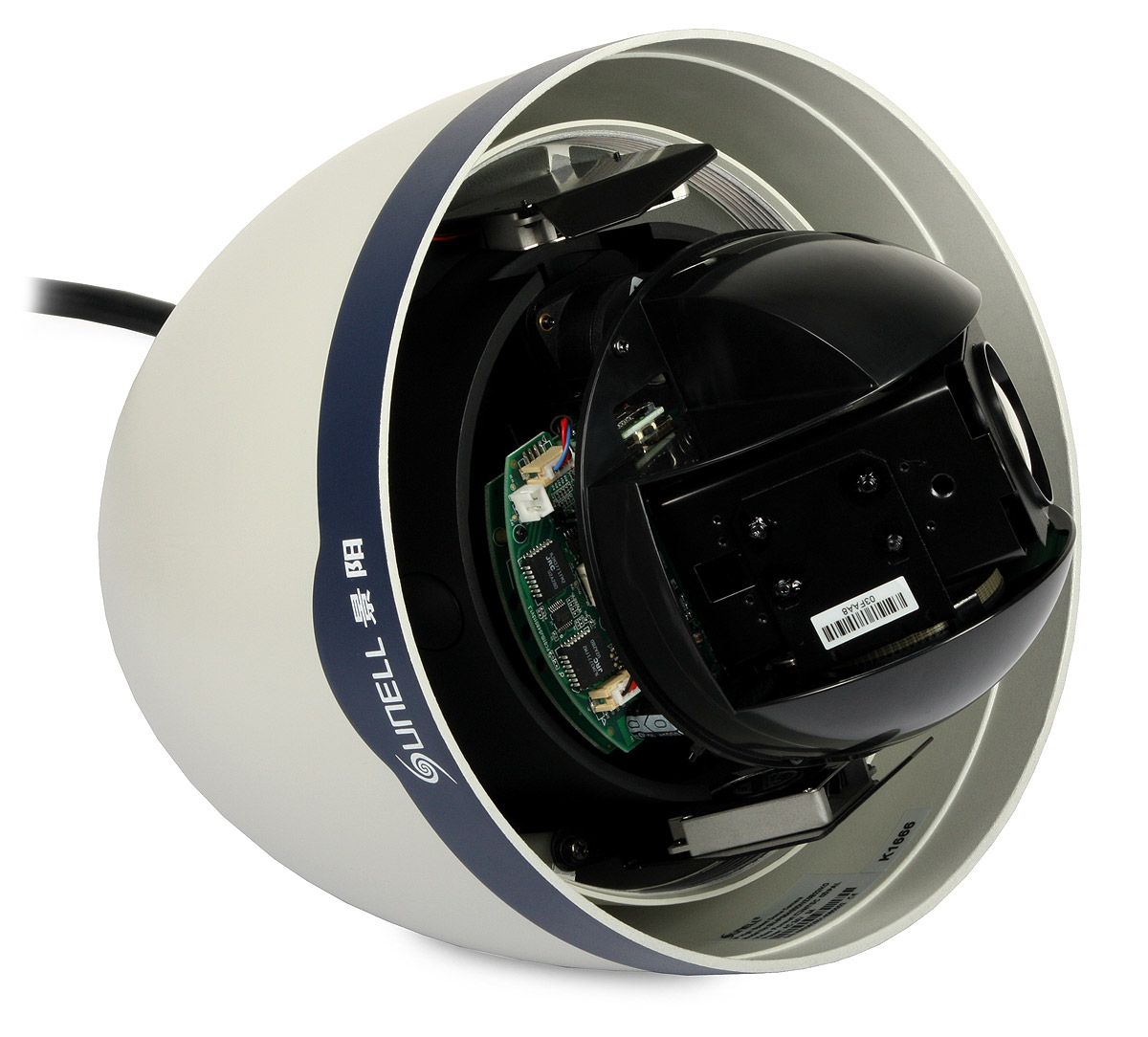

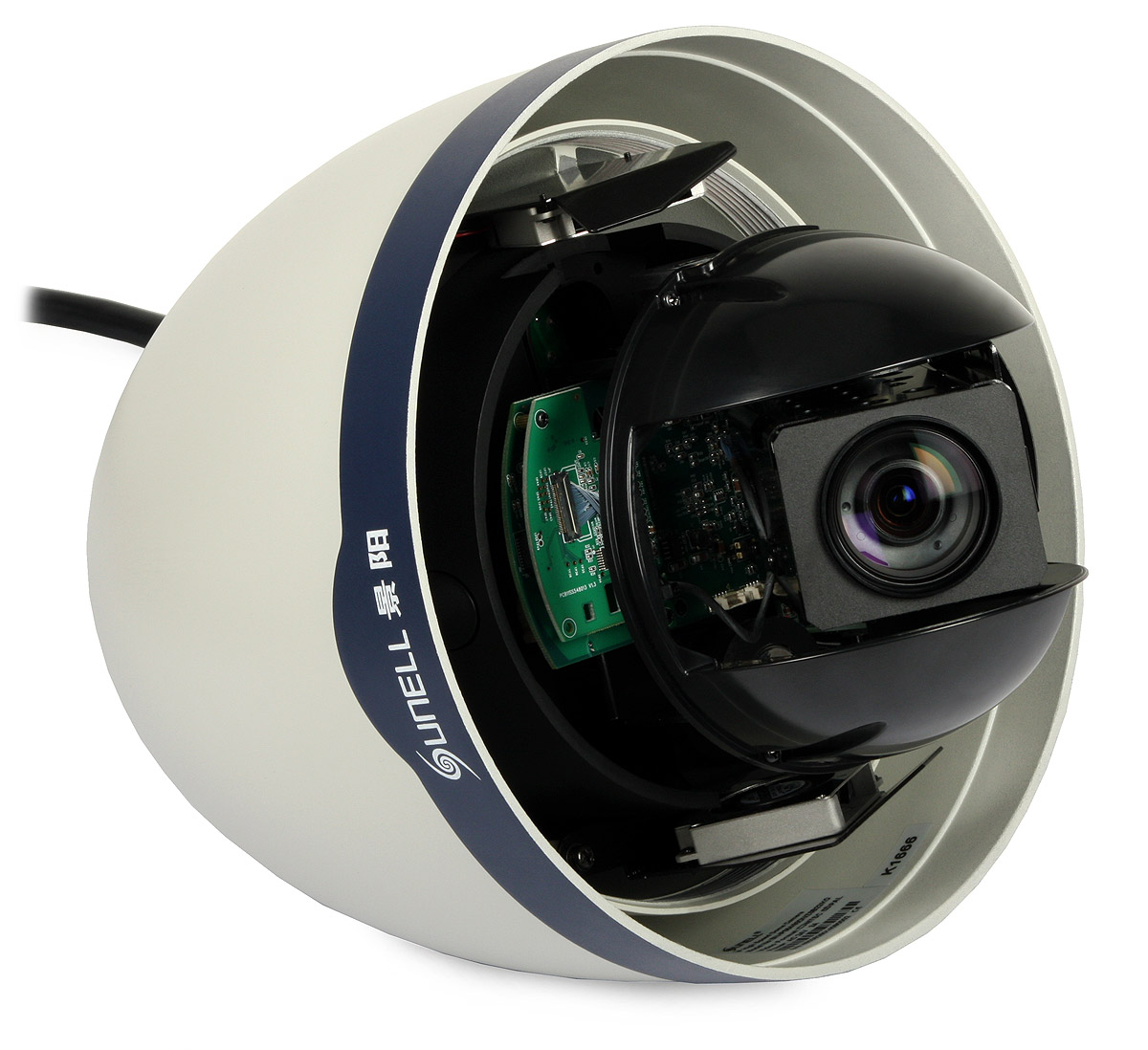

Views of the camera without the dome

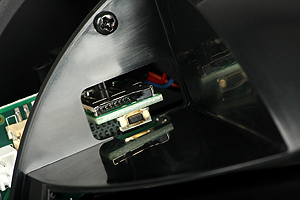

View of micro SD slot

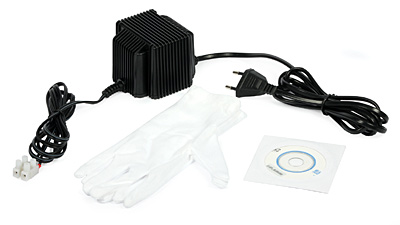

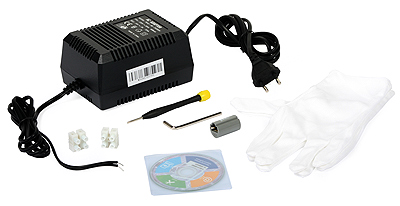

View of the included accessories

Key features

image resolution of 2 MP (1920x1080 - Full HD),
frame rate of 25 fps,
compatibility with all popular browsers thanks to Flash technology,
22x optical zoom,
possibility of access via mobile devices (iPad, Android handhelds),
H.264 or MJPEG video compression,
horizontal viewing angle 55°-2.9°,
multi-stream operation,
audio compression: G.711 A-Law, G.711 U-Law, or RAW_PCM,
motion detection,
analog video output (BNC),
compliance with ONVIF,
slot for microSD card for local recording.

Megapixel IP high speed PTZ dome camera Sunell SN-IPS54/80DN/Z22 K1666 uses Sony Exmor CMOS sensor providing image resolution of 1920x1080 pixels. Thanks to mechanically switching IR filter and B/W mode the camera can provide high quality footage in any lighting conditions.

The P/T mechanism can change the position of the optical axis of the camera at speed of 0.1^o/s to 260^o/s (pan) and 0.1^o/s to 360^o/s (tilt). In conjunction with 22x optical zoom and 12x digital zoom it allows for detailed monitoring of large areas with total zoom up to 264x .

Web access to a video stream from the camera performed via IE requires installation of ActiveX controls. Alternative browsers (Firefox, Opera, Chrome) do not need any plug-ins or patches - thanks to Flash technology the image is directly displayed by the respective browser.

The camera has the ability to transmit three video streams at 25 fps, with resolutions of 1920x1080 and 640x360 pixels, which allows recording the video in the highest resolution and remote viewing it on mobile devices with lower display resolution.

Adjustments of the image:

quality,
exposure time,
brightness,
sharpness,
AGC or manual gain control,
noise reduction,
vertical/horizontal rotation,
CBR or VBR mode,
resolution,
frame rate,
white balance,
key-frame interval.

Thanks to Real Time Streaming Protocol (RTSP), the camera can simultaneously broadcast the video to multiple users via streaming servers.

SN-IPS54/80DN/Z22 camera supports the following alarm events:

motion detection,
running out of disk capacity,
input alarm signal.

The K1666 megapixel camera is a professional PTZ device with 2 MP resolution and H.264 or MJPEG video compression. It can effectively work indoors and outdoors. The features of Sunell SN-IPS54/70DN/Z18W camera make this model a perfect device for video surveillance of streets, squares, parks, parking lots, airports, stations, industrial halls, large building sites and storage areas etc.

Sunell cameras monitor office spaces, airports, cities, industrial halls, hospitals

A screenshot from the free software supplied with the camera

With the included free camera management software (NVR utility called NVMS), the user can configure and manage up to 36 Sunell cameras. NVMS automatically finds Sunell cameras in Ethernet networks and performs their network configuration necessary for normal operation.

Basic features and functionality of the software:

video setting,
network configuring,
schedule, motion detection and alarm setting,
searching for and playing back recordings,
creating new user accounts and assigning access rights.

Sunell IP cameras fully integrate with NUUO NVR software K3104, K3108, K3116, K3132, K3164, Digifort K3001, K3002, K3003, K3004, and with standalone NVRs K4108, K4116, K4204.

The camera fulfills national and international requirements/standards for professional CCTV equipment.

Specifications

Name	Sunell SN-IPS54/80DN/Z22
Cod	K1666
Compression	H.264, MJPEG
Image sensor	Sony Exmor CMOS
Video resolutions	1920 x 1080 / 640 x 360
Video streams	3 (independent)
Frame rate	25 fps
Stream bandwidth	5 kbps - 12 Mbps
Optical zoom factor	22
Digital zoom factor	12
Noise reduction	YES
White balance	Automatic, indoors, outdoors, manual, street lighting
Image transformations	B/W; horizontal/vertical inversion
Video motion detection	YES
Horizontal viewing angle	55°-2.9°
Pan range	360° (unlimited)
Tilt range	0° - 93°
Tilt speed	0.1°/s - 360°/s
Pan speed	0.1°/s - 360°/s
PTZ control	RS485; IP (via browser or NVMS)
Max. number of presets	255
Maximum number ofsimultaneous connections	12
Analog video output	BNC 75 ohm
Alarm actions	Motion detection triggers sending the image to a configured email address and/or activates the alarm output
OSD	Date/time. channel name. user-definable text
SD card slot	Micro SD max. 32 GB
OS (camera)	Linux 2.6
Alarm event	Motion detection
Network interface	RJ-45 10/100Base-T
Protocols	IPv4/v6. RTP/RTCP. TCP/UDP. HTTP. DHCP. DNS. FTP. DDNS. PPPOE. SMTP
Audio	YES; two-way
Audio compression	G711.1_ALAW G711.1_ULAW RAW_PCM
Audio banwidth	30 - 4000 Hz
Hardware watchdog	YES
Alarm inputs/outputs	2/1
Alarm input voltage (High)	5...12 VDC
Power	24 VAC ±5% / 2500 mA
Startup temperature range	-10°C...+60°C
Operating humidity	20%...95%
Weight	6 kg
Compatible browsers	Internet Explorer; Mozilla Firefox; Opera; Google Chrome; Safari
Certificates	CE
