Two-channel Dimmer & Double Sender: F&Home Radio rH-D2S2 LR (DIN rail)

Code: F2323

Be the first to review this product

Availability: Out of stock

Including VAT 186.20 EUR Disc. 0 %

Details

View of the device
View of the device
Array
The rH-D2S2 LR module integrates two dimmers and two potential free contact inputs. The module communicates wirelessly with the system (server) and controls two loads connected to 230 VAC power network. The range of the module is much longer (up to 300 m) than of the standard version (rH-D2S2 F2322).
The module has two physical inputs for connecting two monostable contacts and two connectors for attaching loads. The load can be resistive (incandescent lamps), inductive (AC motors and transformers) and capacitive (fluorescent lamps). Power control in the range of 0-100% is carried out on the basis of phase modulation, with switching off synchronized with zero crossings of the current.
Symbol in design and configuration software:
The symbol of rH-D2S2 LR
The symbol of rH-D2S2 LR

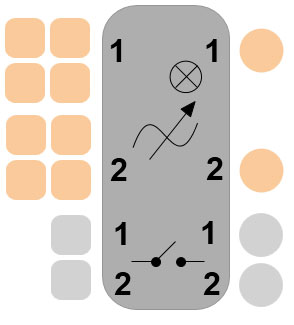

The rH-D2S2 LR module is represented by object that consists of two channels reading information about the state (on/off) and power level. The assigned algorithm limits the maximum power for each channel, and controls the connected devices (lamps or other loads) in compliance with the start/stop times and attributed power levels. The confirmed status of each dimmer channel is provided on its output as a feedback. The element also has two inputs and two outputs, separate for each physical input. Shorting or opening a contact changes the logic state at the corresponding output (0/1).
Installation:
Array
  • Switch off the AC line and make sure that there is no voltage.
  • Mount the module on DIN rail (TH 35 mm).

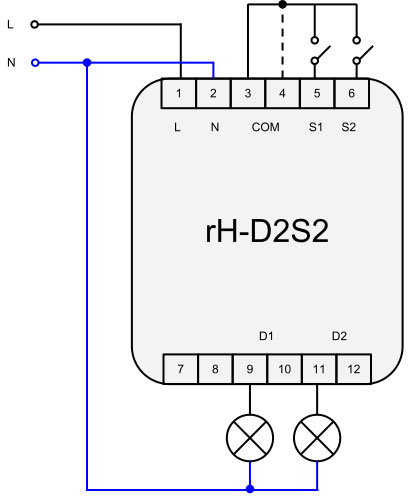

  • Connect the wires according to the diagram above.
  • Switch on the AC line.
  • Register the device in the system.
An example application:
Array

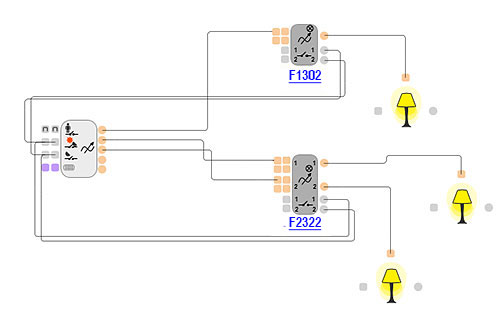

In the diagram above, the F1302 and F2322 or F2323 dimmers allow the user to change scenes by pressing the first button on any of the modules, and switch off the scene with the second button. Depending on the set scene, the control program provides information about the brightness of the light from the lamps connected to the outputs of the modules.
A more advanced scheme for lighting control can be found in the Lighting control project article.
About the system:
Specifications
NameF&Home Radio rH-D2S2 LR
CodeF2323
Power230 VAC / 50 Hz
MountingDIN rail
RF communication band [MHz]868
Communication mode
two-way
Data encryptionYES
Open space range
300 m
Loads2x 150 W (capacitive load)
2x 200 W (resistive load)
Smooth switching-on (increasing power from 0 to a set value)
0.2 s ... 30 s
Inputs2x (for monostable contacts)
Open circuit voltage / closed-contact current [V / mA]9 / 7
Galvanic isolation between AC power and control circuitYes
Operating temperature range0ºC ... 45ºC
Operating humidity / environment
<= 85% (no condensation of
water vapor) / no aggressive gasses
Protection measures
1 A current limiter;
overload (overheating)
Dimension [mm]52.5 x 90 x 65
Ingress protection rating
IP 20
