PoE Power Supply PSA16U-480

Code: M1890

Be the first to review this product

Availability: In stock

Including VAT 55.56 EUR Disc. 0 %

Details

View of the power supply
View of the power supply
View of the power supply - AC connector
View of the power supply - AC connector
PSA16U-480 is designed for powering devices using PoE technology. This technology allows to run the system with only one UTP/FTP cable which transmits data and provides supplying voltage. Compliance with IEEE802.3af standard enables the user to employ the supplier for powering any PoE device.

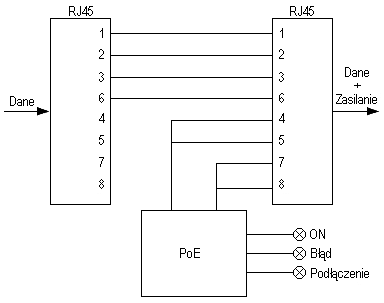

Wiring diagram
Wiring diagram
Specifications
NamePSA16U-480
CodeM1890
Input voltage100 – 240 VAC
Current consumption
0.35 A max. at 240 VAC
Input frequency
47 – 63 Hz
Output voltage
48 VDC
Output power
15.4 W
Efficiency65% at max. load and 120 VAC 60 Hz input
Working temperature0 – 40 ºC
Humidity5 - 90 %
Led indicators
Power

Error

Connection

Input connector
IEC320
ProtectionsShort-circuit (compliance with 802.3af)

Overload (compliance with 802.3af)

Ripples<500 Hz – 0.5 V

500 – 150 kHz – 0.15 V

150 kHz – 500 kHz – 0.15 V

500 kHz – 1 Mhz – 0.1 V

CertificatescUL/UL, CE, CCC, TÜV, FCC
Dimensions140 x 65 x 36 mm
Weight0.2 kg
